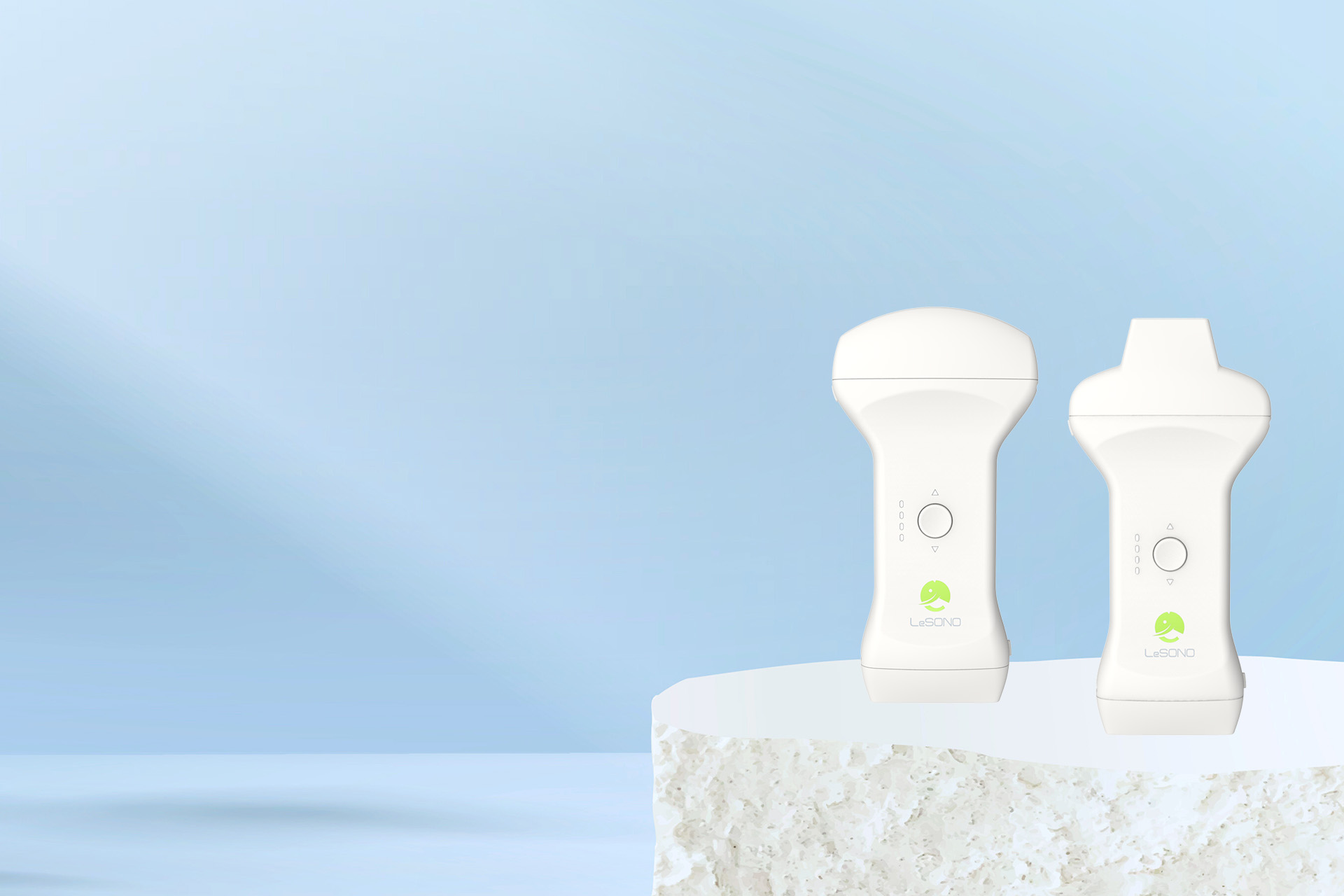

LX192LC and LX128LC feature a dual-probe 3‑in‑1 design combining convex, linear, and cardiac presets. This versatility allows rapid switching between imaging modes for abdominal, vascular, MSK, and cardiac exams, enhancing efficiency in emergency, ICU, and bedside care.
LX128LP is a wireless handheld ultrasound optimized for cardiac and vascular assessments. Its compact design, clear imaging, and fast start‑up enable rapid diagnostics in emergency, ICU, and outpatient care.
 |
 |
 |
||||
|---|---|---|---|---|---|---|
| LX192LC | LX128LC | LX128LP | ||||
| L12-5 | C5-2 | L12-5 | C5-2 | L12-5 | P4-2 | |
| Frequency Bandwidth | 4.2 - 12.5 MHz | 2.0 - 5.0 MHz | 4.2 - 12.5 MHz | 2.0 - 5.0 MHz | 4.2 - 12.5 MHz | 1.3 - 3.7 MHz |
| Max Depth | 12.6 cm | 30 cm | 12.6 cm | 30 cm | 12.6 cm | 30 cm |
| Field of View | - | 60° | - | 60° | - | 90° |
| Wi-Fi | 802.11 a/b/g/n (2.4GHz, 5GHz) | |||||
| Display mode | B mode, M mode, Color Doppler*, Power Doppler*, Pulsed Wave* | |||||
| Battery Working Time | Up to 2 hours | |||||
| Dimension | 145 x 70 x 34 mm | 145 x 70 x 34 mm | 147 x 70 x 34 mm | |||
| Weight | 278 g | 278 g | 266 g | |||
| Waterproofing & Dustproofing | IP67 | |||||
※ Availability depends on different regions.
※ *Optional
※ ※ LX series are splash, water, and dust resistant and were tested under controlled laboratory conditions with a rating of IP67 under IEC standard 60529 (maximum depth of 1 meter up to 30 minutes). Splash, water, and dust resistance are not permanent conditions. Resistance might decrease as a result of normal wear. Do not attempt to charge a wet probe; refer to the user guide for cleaning and drying instructions. Liquid damage is not covered under warranty.
